camber link

Learn what a camber link is and how to use it to tune your RC car's suspension

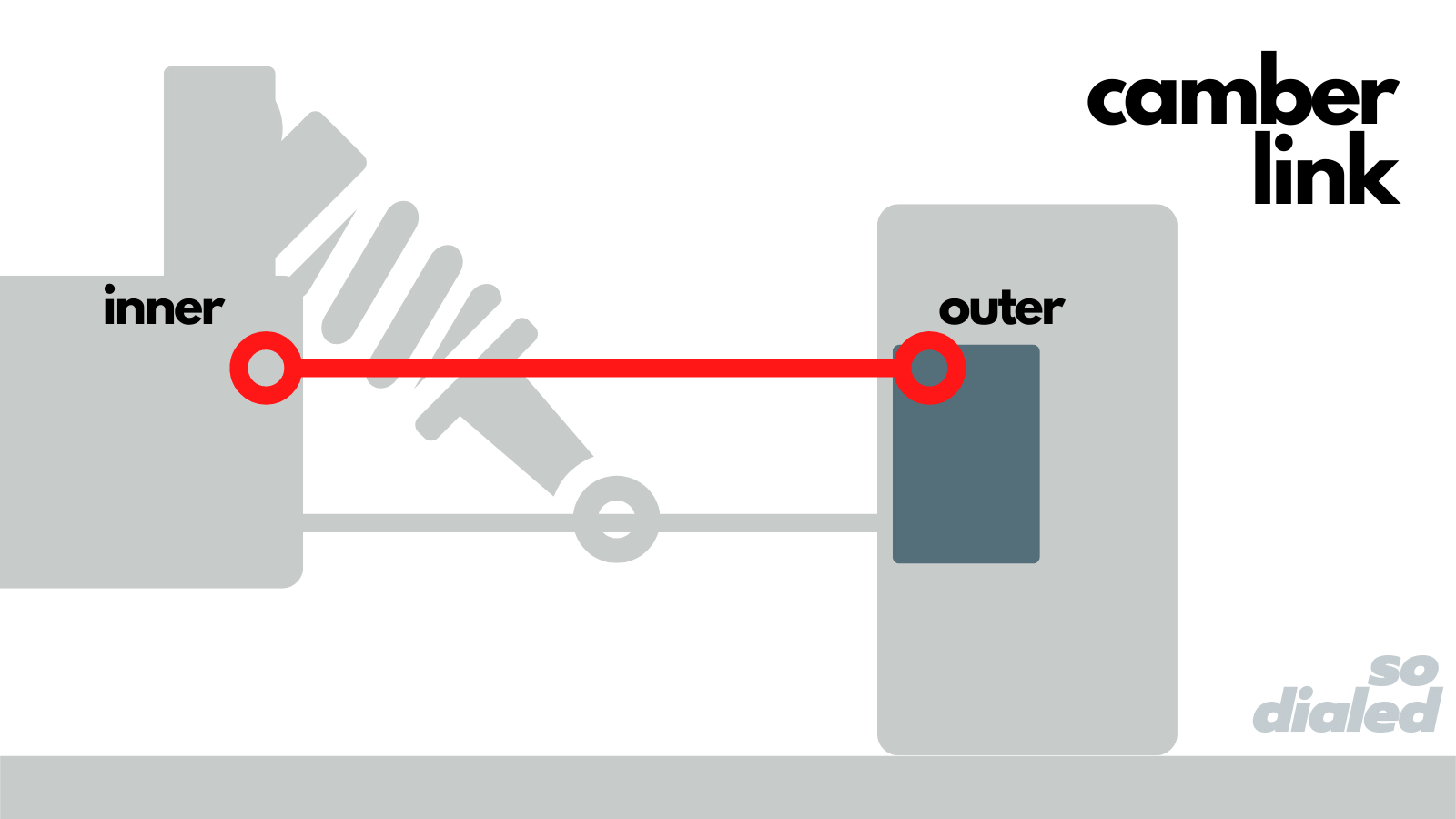

The camber link is the upper link that attaches the wheel's hub to the chassis. In most cars this is a tie-rod with ball cups at each end, but in some cars (usually 1/8th scale) it is an arm, similar to the lower arm.

Changing the length of the camber link adjusts the camber. Changing its mounting positions can affect roll center or camber gain, or both (see images below for details.)

Read our article on camber for details.

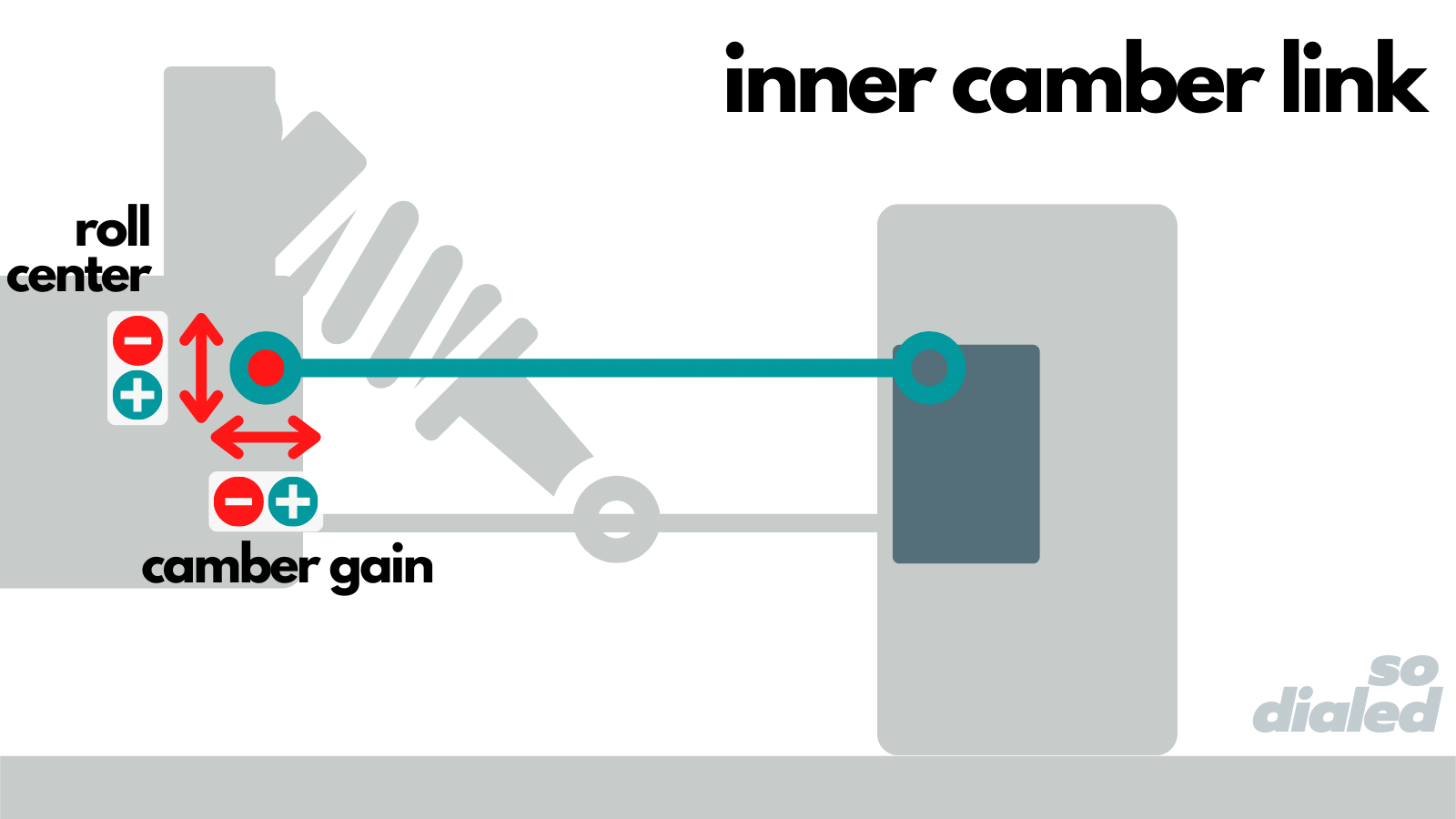

Diagram of effects of moving the inner camber link pivot
Effects of moving the inner camber link pivot

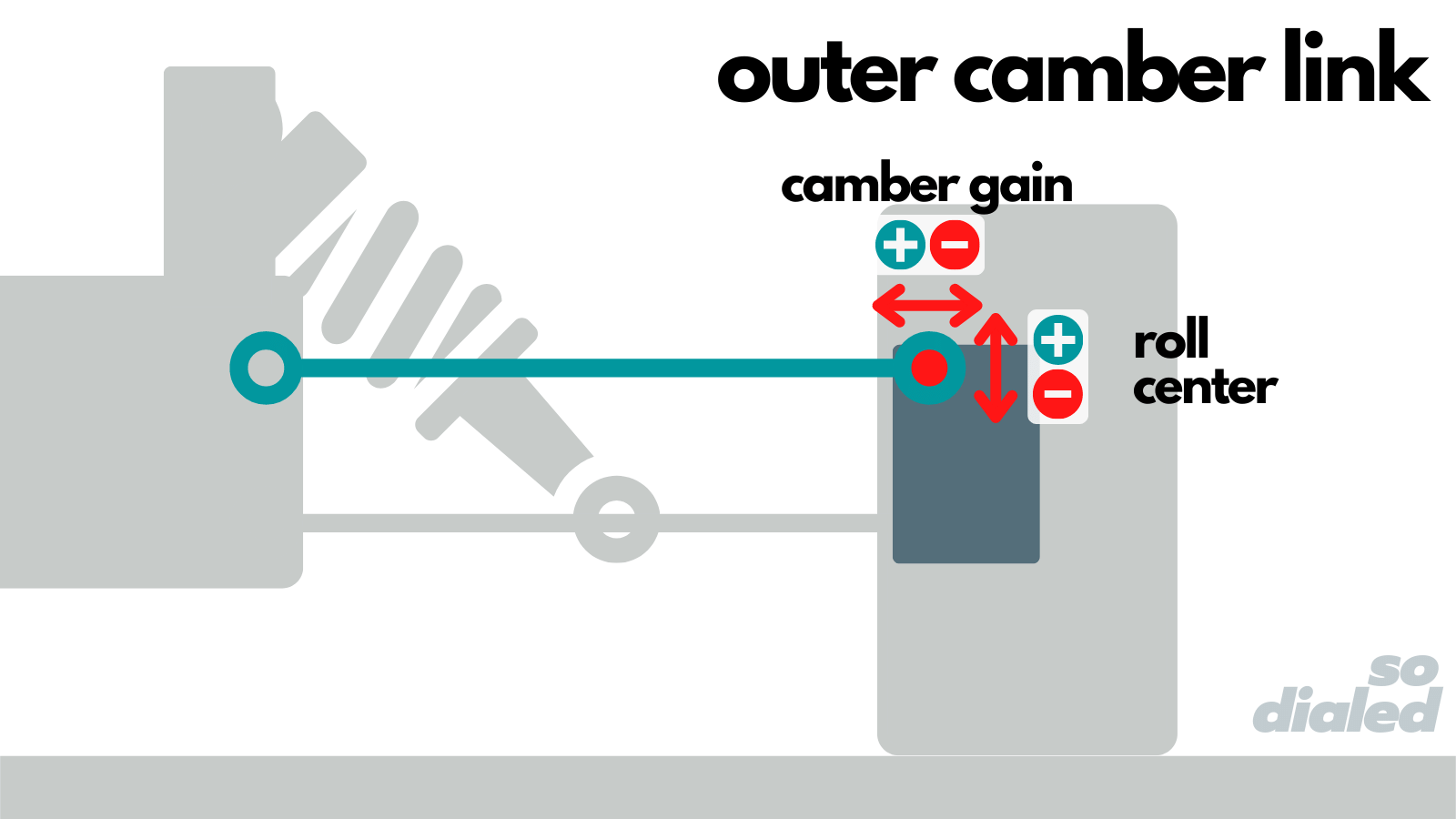

Diagram of effect of moving the outer camber link pivot
Effect of moving the outer camber link pivot
